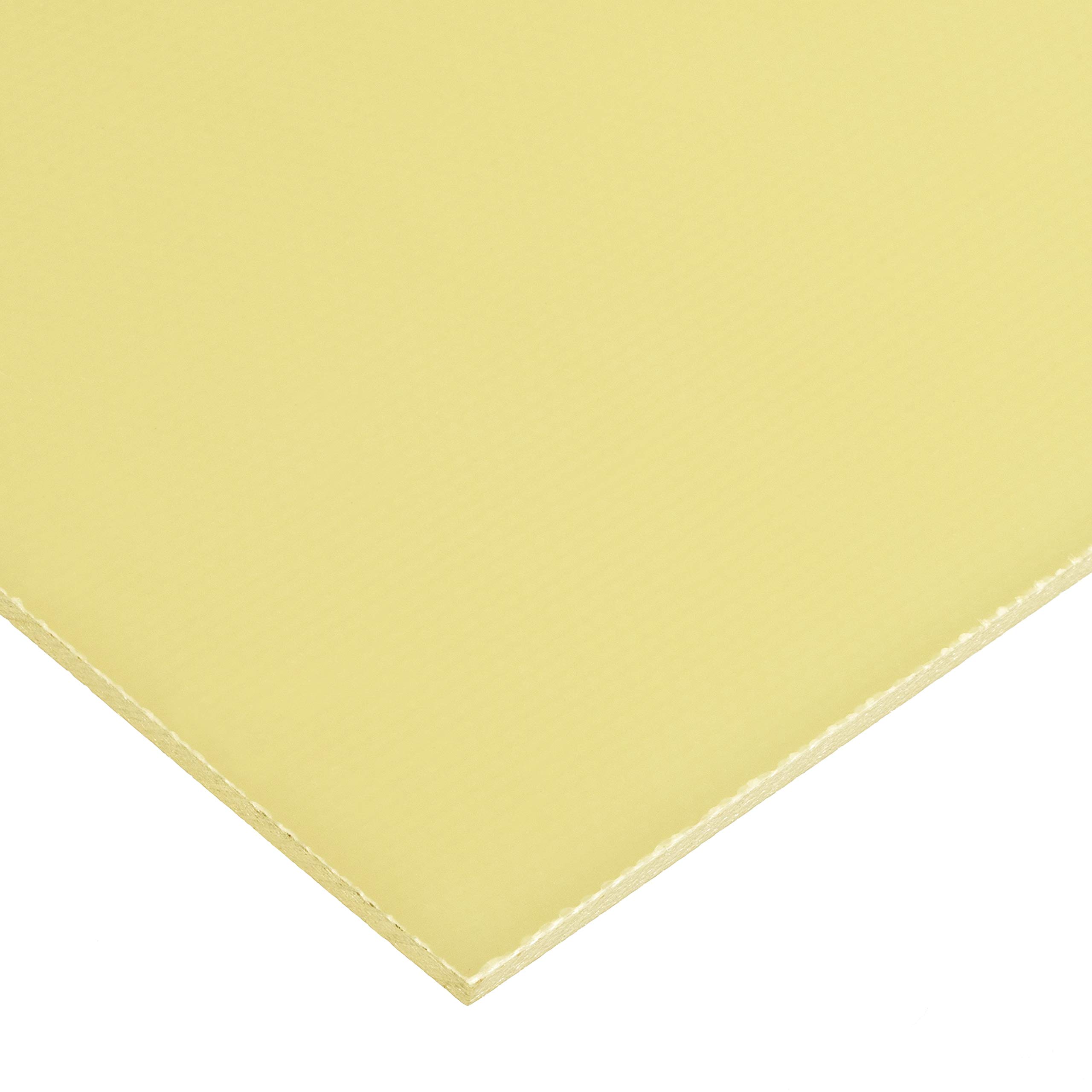

G-10/FR4 Garolite Bar - 1" Height x 4" Width x 24" Length - High Strength Fiberglass Epoxy Sheet for Electrical Insulation & CNC Machining - Perfect for Circuit Boards, Insulators & Industrial Applications

Glass fabric laminated with a flame retardant epoxy resin. G-10/FR4 is strong, machinable, moisture resistant, electrically insulating, and flame resistant. This Product is Manufactured in China. Thickness: 1"; Thickness Tolerance: (-0.035" - +0.043"); Width: 4"; Width Tolerance: (-0.2" - +0.2"); Length: 24"; Length Tolerance: (-0.25" - +0.25"). Color: Yellow; Clarity: Opaque; Tensile Strength: 38,000 psi; Impact Strength Rating: Excellent. Impact Strength: 14.0 ft.-lbs./in.; Impact Strength Rating: Excellent; Coefficient of Friction: Not Rated; Friction Rating: Not Rated; Water Absorption: 0.0015; Water Absorption Rating: Good. Hardness: Rockwell M110; Density: 0.072 lbs / cu. in.; Temperature Range: 280° F; Specifications Met: UL 94 V0.

Material Garolite G-10/FR4; Grade Standard; Backing Type Plain; Shape Bar

Thickness 1"; Thickness Tolerance (-0.035" - +0.043"); Width 4"; Width Tolerance (-0.2" - +0.2"); Length 24"; Length Tolerance (-0.25" - +0.25")

Color Yellow; Clarity Opaque; Tensile Strength 38,000 psi; Impact Strength Rating Excellent

Impact Strength 14.0 ft.-lbs./in.; Impact Strength Rating Excellent; Coefficient of Friction Not Rated; Friction Rating Not Rated; Water Absorption 0.0015; Water Absorption Rating Good

Hardness Rockwell M110; Density 0.072 lbs / cu. in.; Temperature Range 280° F; Specifications Met UL 94 V0
